JH-Mech Foldable Tilt Legs Mount Bracket More Solar Energy Angle Adjustable Solar Panel Mounting Bracket

Product Description
item
Adjustable Solar Panel Mounting Brackets Tilt Mount
Place of Origin
China

Shanxi
Brand Name
JH-Mech
Support solar panel
Most brands solar panel up to 300W
Material
Aluminum 6005-T5
Thickness
2.5mm
Width
50mm
Length
3 length options 22'' 28'' 41''
Color
Silver
Tilt Angle
0-90 Degree
Surface Treatment
Anodized
Installation Site

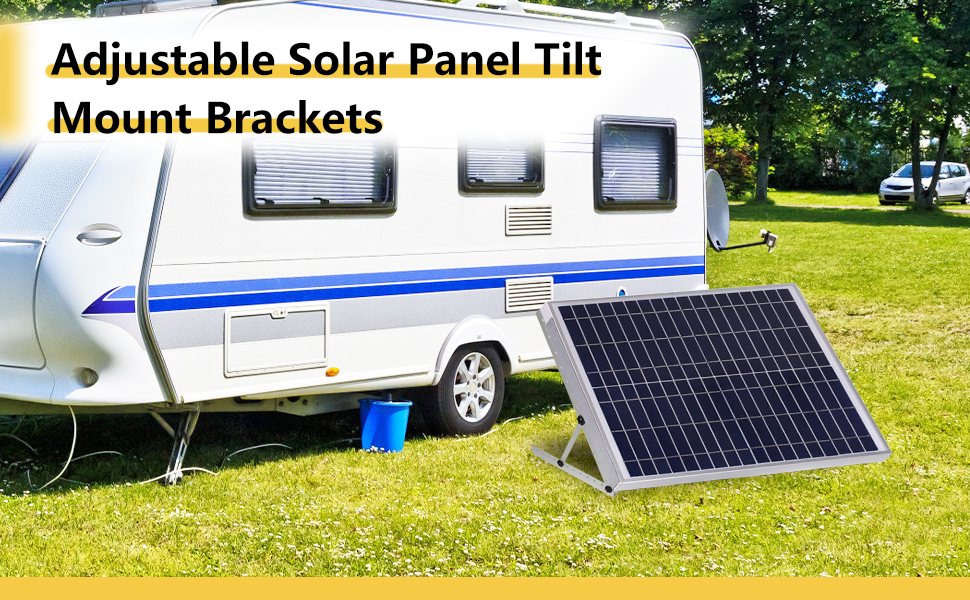

The bracket can be used on RV, flat roofs, MARINE, boat, ground,garages
Weight
1.57KG-2.54KG
Design standard
AS/NZS1170.2

Three Standard Sizes

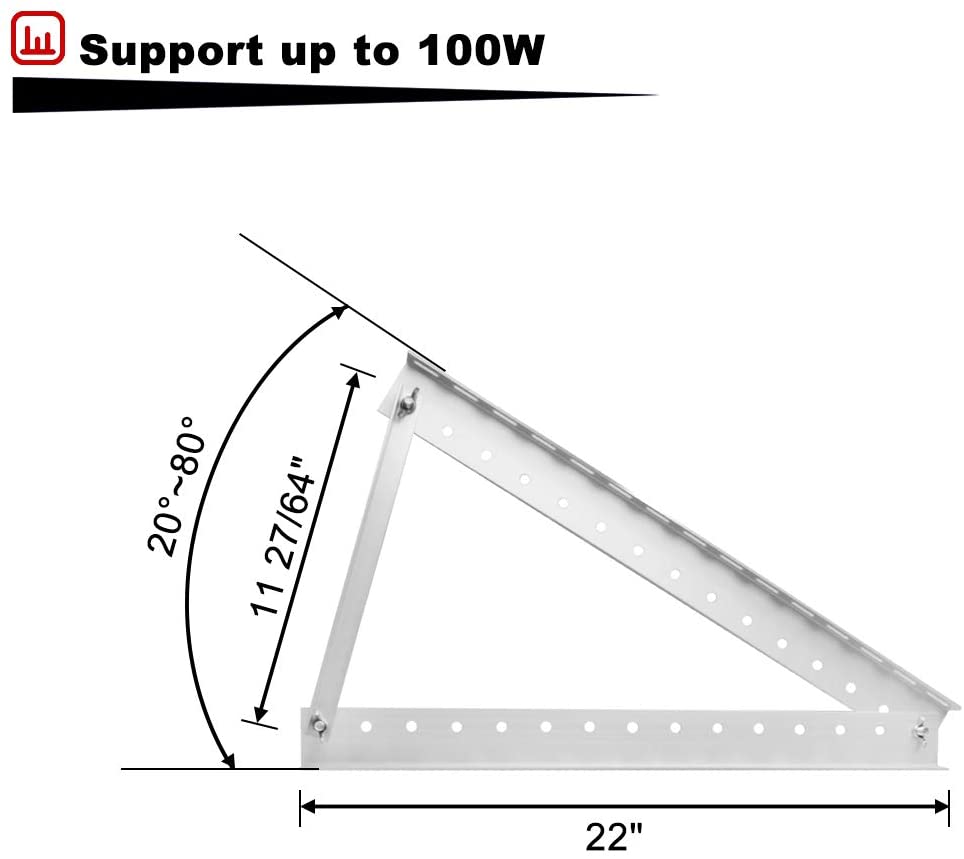

1. 556mm (22 inches) 2. 712mm (28 inches) 3. 1040mm (41 inches)
Product features 1. The product is light in weight and easy to install; 2. It can be widely used in RV, yacht, balcony, roof, wall and ground, etc; 3. It has strong practicability and can be compatible with various specifications of photovoltaic modules: the solar portable adjustable triangular aluminum alloy support supplied by our company has three standard sizes, namely 556mm (22 inches), 712mm (28 inches) and 1040mm (41 inches), which are suitable for installing 100W, 150W and 250w-300w polycrystalline or single crystal photovoltaic modules respectively; 4. All fasteners are made of stainless steel SUS304, which is safe and beautiful, and has high-strength corrosion resistance.

Custom OEM sizes or designs are welcomed too in JH-Mech.


DURABLE MATERIAL

Durable Rust-Resistant aluminum alloy frame stands against different weather elements,light weight and sturdy for portable and outdoor long term use

UNIVERSAL SIZE

Designed for on-grid and off-grid solar systems, mounting brackets are compatible with most solar panels up to 100-300W on the market,

ADJUSTABLE ANGLE

Angle adjustable from 0 to 90 degree, receive more sunlight, adjust angle to collect more sunlight
Details Images
Easy Set up at Any Angle

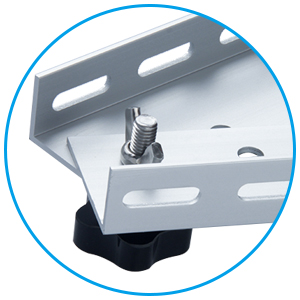

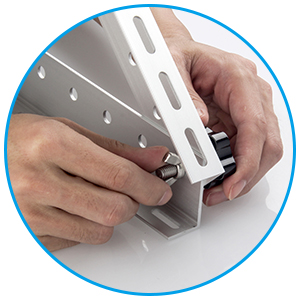

1. With the multiple holes on two bars, solar panels can be adjusted to any angle for maximum sun exposure, use M8 butterfly-nut and M8 flower-head bolt to set up the triangle bracket, use M6 hex flange nut, washers and M6 hex bolt to fix the solar panel frame.

2. Energy-Efficent : Tilting design will get up to 25% more sunlight than laying them flat, Adjustable angle which help your solar panel to generate more power in different season.

3. In winter, the days become short, tilting can increase solar output by 40%; in Fall & Spring,the days are getting longer, tiltingcan increase solar output by 20%.
